IP55 Weather Resistant
With an operating temperature range -25 to +70 deg C, the weatherproof
IP55 rating conforms to EN60529. We suggest outdoor use of the
telephone in sheltered areas or even mounted within a telephone hood, see our range of hoods and booths.
Vandal Proof
Alpha Series are housed within a robust rolled steel body and the handset cord made from armoured stainless steel with a magnetic hook receiver. All external telephone
components are designed to deter vandalism.
Remote Reporting
Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your
requirement. Alerts can be setup and received through SMS or DTMF (model dependant).
Commands and Alerts;
Low battery alert
Poor network coverage alerts
Change outbound call number
Change number receiving SMS alerts
Adjust microphone volume
Adjust speakerphone volume
Change security password
Choice of Colours
The steel body is powder coated yellow or red or as standard, however, other
colours are available up-on request.

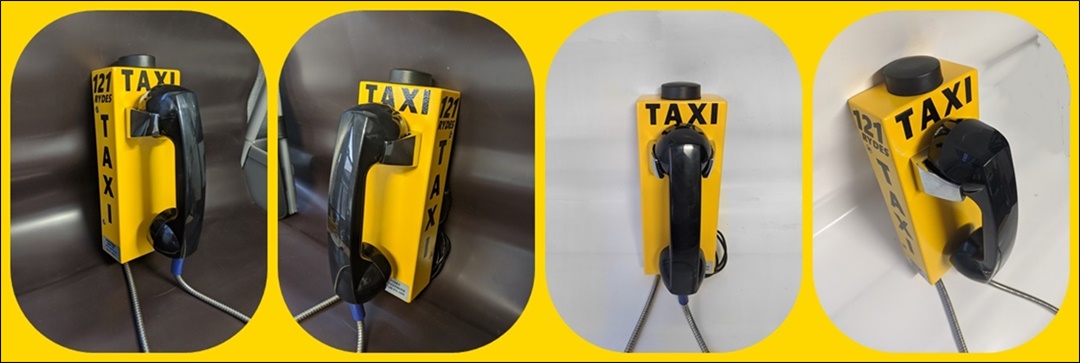

"Taxi" is silk painted on the body of the call point to capture customers
attention. Please speak to us at point of purchase regarding our designs.
Warranty
All our products a sold with 24-months manufacturer warranty.
Versions
Alpha - 3G / 4G / Alpha - Analogue / Alpha - VoIP
Alpha 3G or 4G SIM card version is great for placement where there is no telephone
network. The 12V mains powered telephone can be configured and manged remotely
through SMS application and is open to any mobile network proivder with 3G or 4G
coverage
The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone
VoIP SIP Version through PBX and powered by PoE is programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone or through a small internal keypad located directly within the telephone
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|
|
Power Supply
|
Analogue Telephone Network
|
|
Supply Voltage
|
24 VDC to 65 VDC
|
|
Supply Current
|
20 mA DC to 100 mA DC
|
|
Ringer Volume
|
80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
|
|
Dialing Method
|
DTMF mode in accordance with ITU-T recommendation Q.23.
|
| SIP Version | |
|---|
|
Power Supply
|
PoE or 12V DC
|
|
Power Consumption
|
Idle:1.5W-Active:1.8W
|
|
SIP Protocol
|
SIP 2.0 (RFC3261)
|
|
Support Codec
|
G.711 A/U, G.722 8000/16000, G.723, G.729
|
|
Communication Type
|
Full Duplex
|
|
Ringer Volume
|
90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
|
| 3G Version |
|
|---|
|
Power Supply
|
12V DC or Rechargeable Battery
|
|
Power Consumption
|
Idle:0.3W - Active: 1.5W
|
|
Communication Type
|
Full Duplex
|
|
Ringer Volume
|
90~95dB(A) at a distance of 1m
|
|
Program Method
|
Remote Programming by SMS
|
| Frequency |
|
|---|
|
A version:
|
Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
|
|
E version
|
Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
|
J version
|
Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient Conditions | |
|---|
|
Protection Type
|
IP55, Conforms to EN60529
|
|
Operating Temperature
|
-25°C to +70°C
|
|
Storage Temperature
|
-25°C to +85°C
|
|
Unit size:
|
240 *100 *106(mm)
|
|
Gross weight
|
1.6KG
(2.7kg - Full Keypad Version) |
