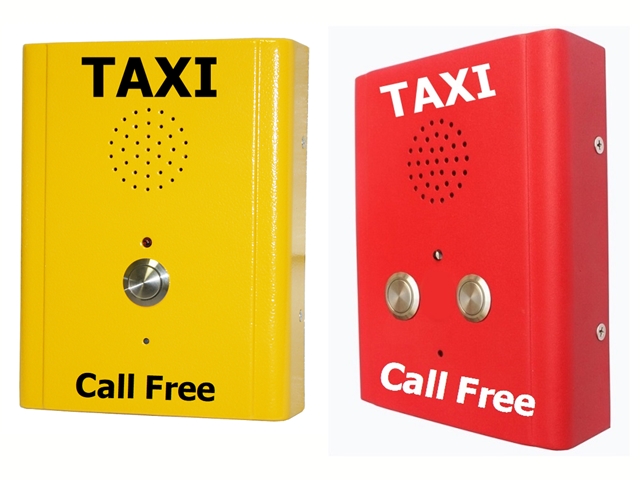

Vandal resistant and hi-visibility internal taxi booking call points with clear and quality audio.
For mounting internally, made of strong rolled steel, the robust anti-vandal body is supplied with tamper-proof fixings. Simple installation and maintenance, perfect for internal locations.
Echo 2-1, a single dedicated push-to-call telephone or Echo 2-2 duel memory, with 2 dedicated push-to-call lines for an optional secondary number
Suitable for mounting indoors, the Echo Series is available to Analogue Networks - powered by analogue line, VoIP SIP - powered by PoE or 12V DC Mains Direct and 3G or 4G (SIM card) - powered by 12V DC Mains adaptor with antenna on 3 meter length cable
IP55 Water Resistant
With an operating temperature range -25 to +70 deg C, the weatherproof IP55 rating conforms to EN60529. We suggest outdoor use of the telephone in sheltered areas or even mounted within a telephone hood, see our range of hoods and booths.
Vandal Proof
Echo 3 Series are housed in sold steel body, the external telephone components and external battery compartment are designed to deter vandals and supplied with tamper-proof fixings.
Remote Reporting
Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your requirement. Alerts can be setup and received through SMS or DTMF (model dependant).
Commands and Alerts;
Choice of Colours
The body is powder painted yellow (single button version) or red (duel button version) as standard, however, other colours are available up-on request. "Taxi" is silk painted on the body of the call point to capture customers attention. Please speak to us regarding other designs.
24 Months Warranty
All our products a sold with 24-months manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.
Versions
Echo - 3G / Echo - Analogue / Echo - VoIP
Echo 3G is great for placement where there is no telephone cable. The telephone can be configured and manged remotely through SMS application with a 3G sim card, purchased from any reputable network provider.
The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone.
VoIP SIP Version through PBX and powered by PoE or mains supply is programmed by DTMF (Duel Tone Multi Frequency).
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Analogue Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | Idle:1.5W-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full Duplex |
| Ringer Volume | 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC or Rechargeable Battery |
| Power Consumption | Idle:0.3W - Active: 1.5W |
| Communication Type | Full Duplex |
| Ringer Volume | 90~95dB(A) at a distance of 1m |
| Program Method | Remote Programming by SMS |
| Frequency | |
| A version: | Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| E version | Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| J version | Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient Conditions | |
| Protection Type | IP55, Conforms to EN60529 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Unit size: | 204 *334 *109(mm) |
| Gross weight | 7KG |
