Waterproof, Vandal Proof & Wireless .....No Line,  No Power ?  No Problem !

Alpha Series Streamlined Hotlines - Waterproof and Vandal Proof

Wireless 3G or 4G Battery Powered / VoIP PoE / Analogue Network

Call Us: 555-555-1234

Alpha 3 Freephone- Wall Mounted

Battery, Wired or Mains Powered

Versions - Wireless SIM Card / Analogue / SIP

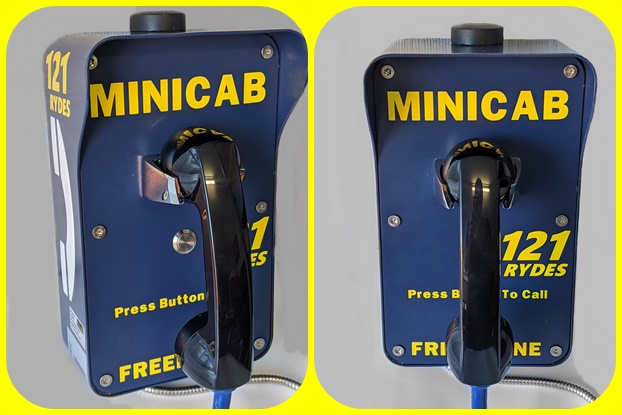

Alpha 3, red or blue with a peaked top to provide further protection against water ingress, with taxi graphics located on the front and side panels. The customer simply lifts the handset and presses the dedicated button to autodial the taxi number. The Alpha range of telephones provides high quality, clear speech and audio.

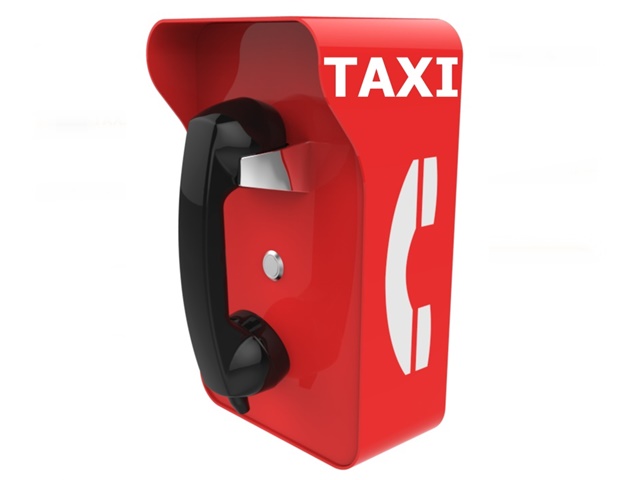

The Alpha Range of Taxi Telephone Hotlines are designed for wall mounting indoors or outdoors (IP65 rated). The body is made from strong rolled steel and steel armoured handset cable to protect against vandalism.

The Alpha Series is available to Analogue PSTN or PABX Network - powered through line, VoIP SIP - powered by PoE or DC Mains and Wireless 3G (SIM) - powered by DC Mains or rechargeable batteries

FEATURES

  • Wireless 3G GSM or 4G LTE / Analogue or VoIP SIP
  • Suitable for wall mounting
  • Anti-vandal body / handset - rolled steel
  • Non-corrosive handset and body
  • Weather protection rated IP65
  • Powered by batteries, PoE, Analogue Network or DC Mains
  • Remote status reporting (3G Version)
  • Simple installation with tamper proof screws
  • Non-volatile memory programmable for speed-dialling (PTT)
  • Remote or local programming SMS or DTMF (version dependant)
  • RoSH, CE & FCC compliant / 24 Months Warranty
  • PDF Icon

    Contact Us

    PDF Icon

    Other Options - Alpha 1 Streamlined Series

    red taxi booking industrial freephone hotline telephone

    Alpha 1-1

    Streamlined Red Autodial Hotline

    PDF Icon

    View Product Page

    stainless-steel taxi free phone telephone

    Alpha 1-2

    Streamlined Grey Autodial Hotline

    PDF Icon

    View Product Page

    yellow vandalproof taxi freephone call station telephone

    Alpha 1-3

    Streamlined Yellow Autodial Hotline

    PDF Icon

    View Product Page

    taxi telephone with keypad wall mounted and strong robust

    Alpha 1-4

    Stainless-Steel Hotline with Keypad for IVR Systems

    PDF Icon

    View Product Page

    pictures of alpha 3 lift to call freephone in colour blue

    IP65 Weather Resistant

    With an operating temperature range -25 to +70 deg C, the weatherproof IP65 rating conforms to EN60529, great for external application.

    Vandal Proof

    Alpha Series are housed within robust steel rolled body, external telephone components battery compartment are designed to deter vandals, supplied with tamper-proof fixings. The telephones handset cord is made from armoured stainless steel with a magnetic hook receiver, no physical moving part and metal call button.

    Remote Reporting

    Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your requirement. Alerts can be setup and received through SMS or DTMF (model dependant).

     Commands and Alerts;

  • Low battery alert
  • Poor network coverage alerts
  • Change outbound call number
  • Change number receiving SMS alerts
  • Adjust microphone volume
  • Adjust speakerphone volume
  • Change security password
  • Rechargeable Battery Packs

    Charging and changing batteries could not be simpler, with simple push-to-fit DC plugs. We recommend 2 batteries per call point to allow for interchanging with continued operation.

    Choice of Colours

    The steel body is powder coated red as standard, however, other colours are available on demand. Optional screen printing or permanent labelling also available on demand.

    24 Months Warranty

    All our products a sold with a 24-months manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.

    Versions

    Alpha - 3G 0r 4G / Alpha - Analogue / Alpha - VoIP

    Alpha 3G is great for placement where there is no telephone cable or external power supply. The telephone can be configured and manged remotely through SMS application with a 3G or 4G SIM card and is open to all mobile networks. Uniquely constructed with a sealed lockable front pannel to house our push-fit plug and play interchangeable rechargeable battery packs, 30 days on standby power. The batteries are simple to charge with a 12V DC mains charger (supplied).

    The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone

    VoIP SIP Version through IP PBX and powered by PoE is programmed by web interface

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Analogue Telephone Network
    Supply Voltage 24 VDC to 65 VDC
    Supply Current 20 mA DC to 100 mA DC
    Ringer Volume 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
    Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
    SIP Version
    Power Supply PoE or 12V DC
    Power Consumption Idle:1.5W-Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
    3G Version
    Power Supply 12V DC or Rechargeable Battery
    Power Consumption Idle:0.3W - Active: 1.5W
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at a distance of 1m
    Program Method Remote Programming by SMS
    Frequency
    A version: Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    E version Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    J version Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    Ambient Conditions
    Protection Type IP65, Conforms to EN60529
    Operating Temperature -25°C to +70°C
    Storage Temperature -25°C to +85°C
    Unit size: 248 *185 *128(mm)
    Gross weight 4.5KG
