IP55 Water Resistant
With an operating temperature range -25 to +70 deg C, the weatherproof
IP55 rating conforms to EN60529.
Vandal Proof

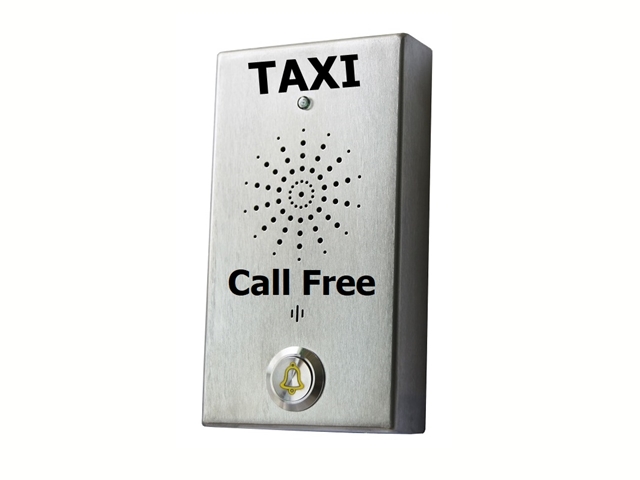

Echo 1 Series are housed in sold stainless steel body, external part are designed to deter vandals and supplied with tamper-proof fixings.
Remote Reporting
Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your
requirement. Alerts can be setup and received through SMS or DTMF (model dependant).
Commands and Alerts;
Poor network coverage alerts
Change outbound call number
Change number receiving SMS alerts
Adjust microphone volume
Adjust speakerphone volume
Change security password
Choice of Colours
The body is stainless-steel as standard, however, powder painting available up-on request. "Taxi" is silk painted on the body of the call point to capture customers
attention. Please speak to us regarding other designs.
24 Months Warranty
All our products a sold with 24-months manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.
Versions
Echo - 3G / Echo - Analogue / Echo - VoIP
Echo 3G is great for placement where there is no telephone line. The telephone can be configured and manged remotely through SMS application with a 3G sim card, purchased from any reputable network
provider. Power with a 12V mains adaptor and supplied with a 3 meter length antenna for mounting at height
The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone.
VoIP SIP Version through PBX and powered by PoE or mains supply is programmed
by DTMF (Duel Tone Multi Frequency).
| Analogue Version | |
|---|
|
Power Supply
|
Analogue Telephone Network
|
|
Supply Voltage
|
24 VDC to 65 VDC
|
|
Supply Current
|
20 mA DC to 100 mA DC
|
|
Ringer Volume
|
80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
|
|
Dialing Method
|
DTMF mode in accordance with ITU-T recommendation Q.23.
|
| SIP Version | |
|---|
|
Power Supply
|
PoE or 12V DC
|
|
Power Consumption
|
Idle:1.5W-Active:1.8W
|
|
SIP Protocol
|
SIP 2.0 (RFC3261)
|
|
Support Codec
|
G.711 A/U, G.722 8000/16000, G.723, G.729
|
|
Communication Type
|
Full Duplex
|
|
Ringer Volume
|
90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
|
| 3G Version |
|
|---|
|
Power Supply
|
12V DC or Rechargeable Battery
|
|
Power Consumption
|
Idle:0.3W - Active: 1.5W
|
|
Communication Type
|
Full Duplex
|
|
Ringer Volume
|
90~95dB(A) at a distance of 1m
|
|
Program Method
|
Remote Programming by SMS
|
| Frequency |
|
|---|
|
A version:
|
Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
|
|
E version
|
Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
|
J version
|
Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient Conditions | |
|---|
|
Protection Type
|
IP55, Conforms to EN60529
|
|
Operating Temperature
|
-25°C to +70°C
|
|
Storage Temperature
|
-25°C to +85°C
|
|
Unit size:
|
135 *75 *25(mm)
|
|
Gross weight
|
2KG |
