Waterproof, Vandal Proof & Wireless .....No Line,  No Power ?  No Problem !

Delta Series Taxi Telephone Call Tower - Water Resistant and Vandal Proof

Wireless 3G or 4G / VoIP / Analogue

Call Us: 555-555-1234

Delta Series

Hi-Visibility Vandal Resistant Taxi Solar Call Towers

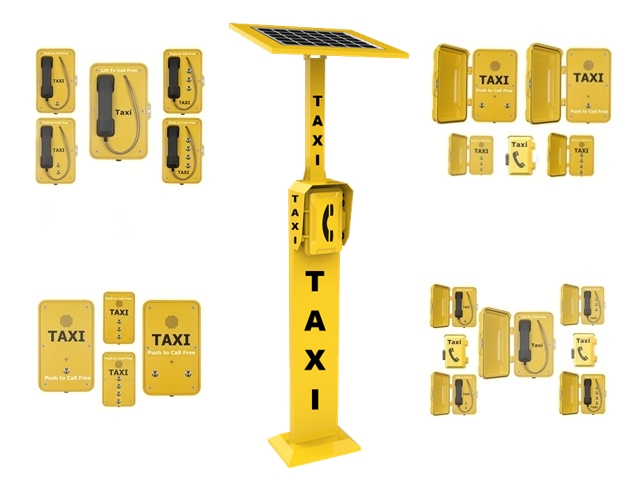

durable robust taxi booking call point with solar pannel and free phone taxi hotline call point 3g, analogue or VoIP

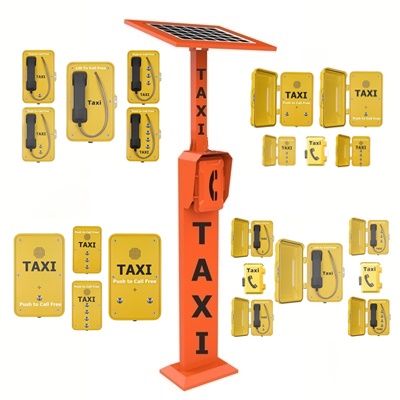

Delta 7 Solar Powered Call Tower

Versions - Wireless Sim Card / Analogue / VoIP

Wireless 3G or 4G GSM / Analogue / VoIP Capability

Delta7-3G Solar Powered Taxi Tower, Hi-Visibility with stand-out taxi graphics, is ideal for placement where there is no telephone cable or external power. The hi-visibility body will certainly capture the customers attention. Constructed from strong anti-vandal steel and IP66 weatherproof. The customer simply pushes the call button or lifts handset to autodial the taxi booking centre.

Choice of Telephones

Choose from our full range of Delta Call Point models, we have many options available to suit your requirement and the telephone is included within the price of the Delta Call Pillar.

Simple installation and easy to maintain, the solar panels can be adjusted and angled to capture maximum levels of sunlight. A back-up battery is provided to ensure continued operation. Wireless, Analogue and VoIP versions available.

FEATURES

  • 3G or 4G wireless/ analogue or VoIP SIP

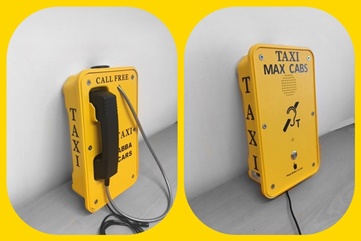

  • taxi station light up beacon and loud sounder for specialist taxi booking free phone serviceswith
  • Structure made from galvanised steel
  • Anti-vandal phone body - cast aluminium and steel plate
  • Weather protection rated IP66
  • Solar power with battery backup
  • Remote status reporting (3G Version)
  • Vandal resistant metal call button
  • Simple installation with tamper proof screws
  • Non-volatile memory programmable for speed-dialling
  • Remote programming SMS or DTMF (version dependant)
  • Beacons, sounder horns or full keypad models available
  • RoSH, CE & FCC compliant / 12 Month Warranty
  • PDF Icon

    Contact Us

    PDF Icon

    Extended Options

    For Innovative Logistical Solutions, or to simply mitigate an IVR communication systems, with 2,3 or 4 pre-stored autodial numbers. Silk screen printing of logos and text graphic are available, as agreed upon request.

    Example of use;

    Delta Call Points stationed at unmanned ranks and used by customers to autodial the master Delta Call Point which is located at the main overflow rank. The awaiting driver is quickly alerted to the call by the flashing beacon and / or sounder, proceeds with the booking by answering the call.

    Each Delta Call Point multi-functions in such a way that offers both customers and the driver a dedicate booking and enquiry points. This type of functionality is not limited by the example above.

    Choice of Telephones

    The Delta Solar Call Tower is supplied with your choice of pre-mounted Delta Telephones

    taxi booking telephones with handset and push to call freephone buttons, vandal resistand tamperproof and water tight from taxitel

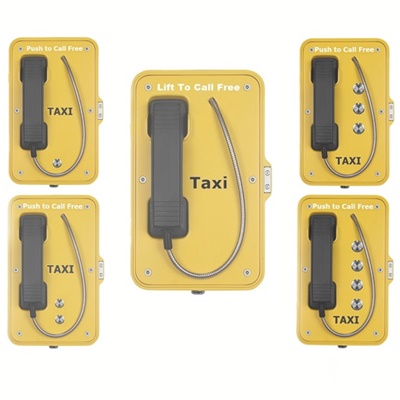

    Delta 1 Series

    Handset Telephone (Without Door) - Push Buttons to Call / Lift Handset to Call

    PDF Icon

    Find Out More

    wall mounted  taxi booking hotlines free phones and speakephones. Vandal proof and water resistant push to call points

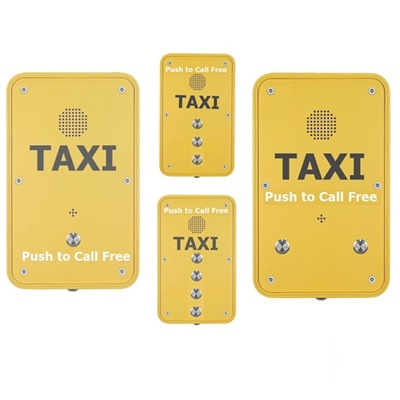

    Delta 2 Series

    Speakerphone (Without Door) - Push Buttons to Call



    PDF Icon

    Find Out More

    industrial taxi call points IP66 waterproof speakerphones with security door. Robust taxi telephones

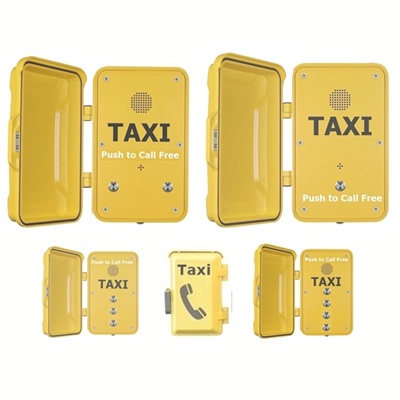

    Delta 3 Series

    Speakerphone (With Door) - Push Buttons to Call

    PDF Icon

    Find Out More

    taxi booking free phone with handset and telephone door. Anti-theft and water tight taxi call point.

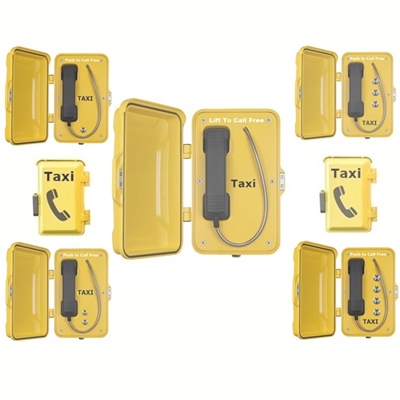

    Delta 4 Series

    Handset Telephone (With Door) - Push Buttons to Call / Lift Handset to Call

    PDF Icon

    Find Out More

    Solar Powered

    The Solar Call Tower is supplied with back-up rechargeable batteries for year round application. The solar panels are bracket mounted and easily adjusted to ensure maximum exposure to light phases with little maintenance required. The body is constructed of heavy duty galvanized steel, free of sharp edging, powder painted orange as standard and fixed to the floor with 4 screws. The pillar can be painted a colour of your choice or manufactured in stainless steel AIS304/AIS316L, up on demand.

    Weatherproof IP66

    Suitable for harsh wet conditions with an operating temperature range -25 to +70 deg C. The weatherproof IP66 rating conforms to EN60529, will guarantee optimum performance in uncompromising environments.

    Vandal Proof

    Delta Series are housed in sold non-corrosive aluminium casing. External telephone components are designed to deter vandalism, supplied with tamper-proof fixings. The telephones handset cord is made from armoured stainless steel with a magnetic handset receiver.

    Remote Reporting

    Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your requirement. Alerts can be setup and received through SMS or DTMF (model dependant).

     Commands and Alerts;

  • Low battery alert
  • Poor network coverage alerts
  • Change outbound call number
  • Change number receiving SMS alerts
  • Adjust microphone volume
  • Adjust speakerphone volume
  • Change security password
  • Choice of Colours

    The steel body is powder coated orange and telephone, yellow as standard, however, other colours are available up-on request. "Taxi" is silk painted on the body of the call point to capture customers attention. Please speak to us regarding other designs.

    24 Month Warranty

    All our products a sold with a 12-month manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.

    Versions

    Delta 7-3G / Delta 7-Analogue / Delta 7-VoIP

    Delta 7-3G is great for placement where there is no telephone cable or external power supply. The telephone can be configured and manged remotely through SMS application with a 3G sim card, purchased from any reputable network provider. Uniquely constructed with a sealed and key lockable battery compartment, this allows for quick deployment whilst on site with simple push-to-fit DC connections., Interchangeable rechargeable batteries ensure lengthy operation where there is no external power supply. The batteries are simple to charge with a DC mains charger (supplied upon purchase).

    The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone

    VoIP SIP Version through PBX and powered by PoE is programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone or through a small internal keypad located directly within the telephone

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Analogue Telephone Network
    Supply Voltage 24 VDC to 65 VDC
    Supply Current 20 mA DC to 100 mA DC
    Ringer Volume 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
    Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
    SIP Version
    Power Supply PoE or 12V DC
    Power Consumption Idle:1.5W-Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type Full Duplex
    Ringer volume 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
    3G Version
    Power Supply 12V DC or Rechargeable Battery
    Power Consumption Idle:0.3W - Active: 1.5W
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at a distance of 1m
    Program Method Remote Programming by SMS
    Frequency
    A version: Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    E version Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    J version Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    Ambient Conditions
    Protection Type IP66, Conforms to EN60529
    Operating Temperature -25°C to +70°C
    Storage Temperature -25°C to +85°C
     Size: 2400 *436 *306(mm)
    Gross Weight 45KG
    • New to TaxTel - Be the first to rate this product!


    Add a review

    3G mobile SIM card, easy swap re-chargeable battery or solar powered. Indoor & outdoor use, Ports, Stations, Taxi Ranks, Streets, Retail, Leisure & Tourism.
    Clear 2Way speech customer to booking office.  Telephone line & VoIP versions too.
