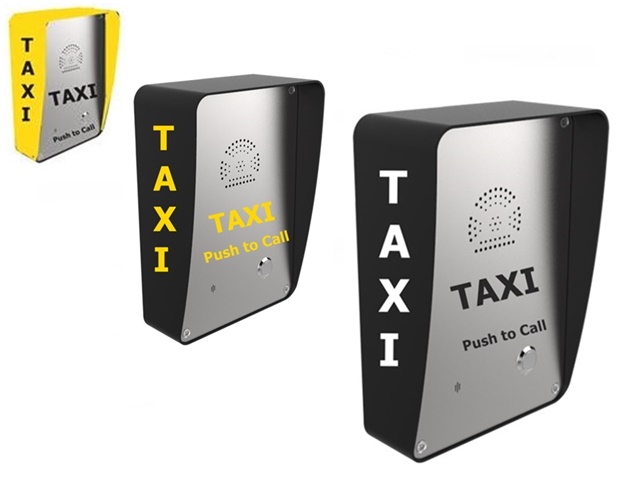

Echo 3, Hi-Visibility Taxi Booking Hotline with high quality audio, providing the public with a dedicated Push-to-Call booking service.
IP66 weatherproof and made from strong rolled steel and stainless-steel font panel is perfect for external wall mounting in public areas. The anti-vandal body is supplied with tamper-proof fixings for wall fixing, easy to install and maintain.
The Echo 3 Series is available to Analogue Networks - powered through analogue line, VoIP SIP - powered by PoE or DC Mains Direct and Wireless 3G (SIM Card) - powered by DC Mains.
Contact Us for Further Details
Weatherproof IP66
Suitable for harsh wet conditions with an operating temperature range -25 to +70 deg C. The weatherproof IP66 rating conforms to EN60529, will guarantee optimum performance in uncompromising environments.
Vandal Proof
Echo 3 Series are housed in sold steel body, the external telephone components and external lockable battery compartment are designed to deter vandals and supplied with tamper-proof fixings.
Remote Reporting
Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your requirement. Alerts can be setup and received through SMS or DTMF (model dependant).
Commands and Alerts;
Choice of Colours

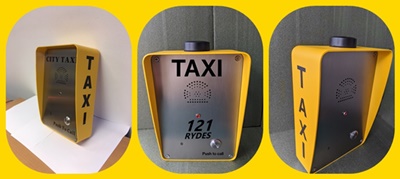

The outer body is powder painted yellow or black (see pictures) as standard, however, other colours are available on demand. Optional screen printing or permanent labelling also available on demand.
24 Months Warranty
All our products a sold with 24-months manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.
Versions
Echo - 3G / Echo - Analogue / Echo - VoIP
Echo 3G is great for placement where there is no telephone cable. The telephone can be configured and manged remotely through SMS application with a 3G sim card, purchased from any network provider.
The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone.
VoIP SIP Version through IP PBX and powered by PoE is programmed by web interface
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Analogue Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | Idle:1.5W-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full Duplex |
| Ringer Volume | 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC or Rechargeable Battery |
| Power Consumption | Idle:0.3W - Active: 1.5W |
| Communication Type | Full Duplex |
| Ringer Volume | 90~95dB(A) at a distance of 1m |
| Program Method | Remote Programming by SMS |
| Frequency | |
| A version: | Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| E version | Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| J version | Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient Conditions | |
| Protection Type | IP65, Conforms to EN60529 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Unit size: | 110 *160 *70(mm) |
| Gross weight | 5KG |
