Weatherproof IP66-IP67
Suitable for harsh wet conditions with an operating temperature range -25 to +70 deg C. The weatherproof IP66-IP67 rating conforms
to EN60529, will guarantee optimum performance in uncompromising environments.
Vandal Proof
Delta Series are housed in sold non-corrosive aluminium casing. External telephone components are designed to deter vandalism, supplied with tamper-proof fixings.
The telephones handset cord is made from armoured stainless steel with a magnetic handset receiver.
Remote Reporting
Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your
requirement. Alerts can be setup and received through SMS or DTMF (model dependant).
Commands and Alerts;
Low battery alert
Poor network coverage alerts
Change outbound call number
Change number receiving SMS alerts
Adjust microphone volume
Adjust speakerphone volume
Change security password
Choice of Colours
The steel body is powder coated yellow as standard, however, other colours are available up-on request. "Taxi" is silk painted on the body of the call point to capture customers
attention. Please speak to us regarding other designs.
24 Months Warranty
All our products a sold with 24-months manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.
Versions

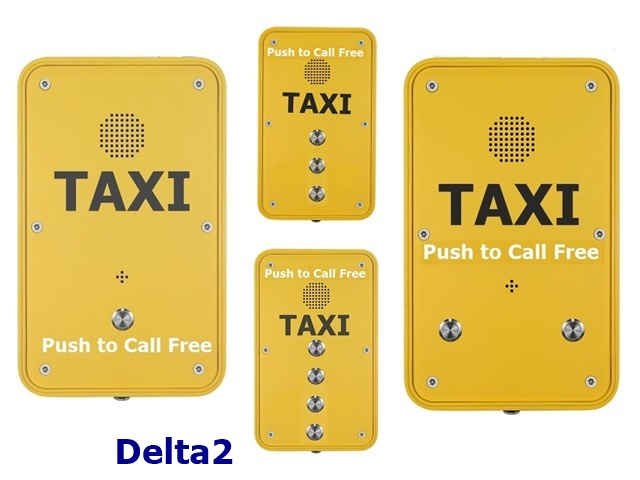

Delta 2-3G / Delta 2-Analogue / Delta 2-VoIP
Delta 2-3G is great for placement where there is no telephone cable or external power supply. The telephone can be configured and manged remotely through SMS application with a 3G sim card, purchased from any reputable network
provider. Uniquely constructed with a sealed and key lockable battery compartment, this allows for quick deployment whilst on site with simple push-to-fit DC connections. Interchangeable rechargeable batteries ensure lengthy operation where there is no external power supply. The batteries are simple to charge with a DC mains charger (supplied upon purchase).
The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone
VoIP SIP Version through PBX and powered by PoE is programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone or through a small internal keypad located directly within the telephone
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
Analogue Version | |
Power Supply
|
Analogue Telephone Network
|
Supply Voltage
|
24 VDC to 65 VDC
|
Supply Current
|
20 mA DC to 100 mA DC
|
Ringer Volume
|
80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
|
Dialing Method
|
DTMF mode in accordance with ITU-T recommendation Q.23.
|
SIP Version | |
Power Supply
|
PoE or 12V DC
|
Power Consumption
|
Idle:1.5W-Active:1.8W
|
SIP Protocol
|
SIP 2.0 (RFC3261)
|
Support Codec
|
G.711 A/U, G.722 8000/16000, G.723, G.729
|
Communication Type
|
Full Duplex
|
Ringer Volume
|
90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
|
3G Version |
|
Power Supply
|
12V DC or Rechargeable Battery
|
Power Consumption
|
Idle:0.3W - Active: 1.5W
|
Communication Type
|
Full Duplex
|
Ringer volume
|
90~95dB(A) at a distance of 1m
|
Program Method
|
Remote Programming by SMS
|
Frequency | |
A version:
|
Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
|
E version
|
Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
J version
|
Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
Ambient Conditions | |
Protection type
|
IP66/67, Conforms to EN60529
|
Operating Temperature
|
-25°C to +70°C
|
Storage Temperature
|
-25°C to +85°C
|
Unit Size:
|
339 *246 *126(mm)
|
Gross Weight
|
7KG
|
