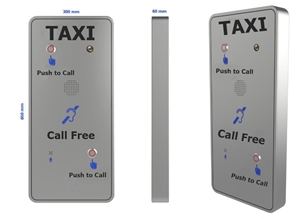

Echo 5 call stand is designed to meet the needs of disabled and non-disabled customers with an internal hearing loop for the hearing impaired, an optional camera for on site monitoring and with easy reach microphones and call buttons to assist wheel chair users. The call point complies with The Disability Discrimination Act.
The stand is structurally strong and robust, constructed from cold rolled steel and finished in blue powder paint with optional taxi silk printed customised graphics. The call point is IP65 weatherproof, made from brushed stainless-steel with tamper-proof fixings. An optional pin sized security camera, provides visual link to the stand.
The Echo Series is available to Analogue Networks - powered through Telephone Network or DC Mains, VoIP SIP - powered by PoE or DC Mains Direct and Wireless 3G, powered by mains supply
IP65 Weather Resistant
With an operating temperature range -30 to +70 deg C, the weatherproof IP65 rating conforms to EN60529, will resist moderate levels of rainfall. We suggest outdoor use of the telephone in restricted to sheltered areas or even mounted within a telephone hood, see our range of hoods and booths.
Vandal Proof
Echo 5 Series are housed within robust stainless-steel body with strong anti-vandal buttons and tamper-proof fixings to deter vandals.
Choice of Colours
The call point is supplied as standard with a brushed stainless-steel and stand finished blue, however, options also available for painting red, yellow or grey. Optional screen printing or permanent labelling also available on demand. Please speak to us regarding other designs.
24 Months Warranty
All our products a sold with a 24-months manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.
Versions
Echo - 3G / Echo - Analogue / Echo - VoIP
Echo 3G is great for placement where there is no telephone cable. The telephone can be configured and manged remotely through SMS application with a 3G sim card, purchased from any network provider.
The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone.
VoIP SIP Version through IP PBX and powered by PoE is programmed by web interface
compliance
FC - This mark indicates compliance with FCC Part 15 Subpart B Class B
CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC
| Analogue Version | |
|---|---|
| Power Supply | Analogue Telephone Network |
| Dialing | MF (tone) |
| Supply Current | Drawn from telephone line |
| Lightning / Transients | Protection to ITU-T k.21 enhanced levels |
| Programming | Can be programmed as an auto-dial phone |
| SIP Version | |
| Power Supply | PoE or 12V - 24V DC |
| Port | WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX |
|
LAN: 10/100Base- T RJ-45 for PC, Auto MDIX |
|
| Power Consumption | Idle:1.5W/ Active:1.8W |
| Communication Type | Full Duplex |
| Voice Features | Echo cancellation: Support G.168 and hands-free can support 96ms |
| Supports full duplex | |
| SIP support SIP domain, SIP authentication (none basic, MD5), DNS name of server | |
| DTMF:SIP info, DTMF Relay，RFC2833 | |
| Call control features: Flexible dial map, supports hot-line | |
| Network Features | WAN/LAN: support Bridge mode |
| Supports static IP address | |
| Supports DHCP get IP on WAN port | |
| Supports VLAN | |
| Supports web config | |
| Camera | |
| Video Codec | H.264 HP、MPEG4 SP、MJPEG |
| Resolution Ratio | 1,280*720@20fps、 |
| Sensitivity | 0.5Lux,1.0V/lux-sec (550nm) |
| Viewing Angle | 135'(H),109'(V) |
| Video Compression Output | 16Kbps - 2Mbps FPS:10-30fps |
| D-Range | 71dB（SNR MAX = 42.3dB |
| Ambient Conditions | |
| Protection Type | IP65, Conforms to EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Unit size: | 1800*300 *60(mm) |
| Gross weight | 50 KG |
| Ringing Tone | Shrill warble tone 90 dBA @1 metre |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours in use |
