Waterproof, Vandal Proof & Wireless .....No Line,  No Power ?  No Problem !

Alpha Series Streamlined Hotlines - Waterproof and Vandal Proof

Wireless Sim Card / Battery Powered / VoIP PoE / Analogue Wired Network

Call Us: 555-555-1234

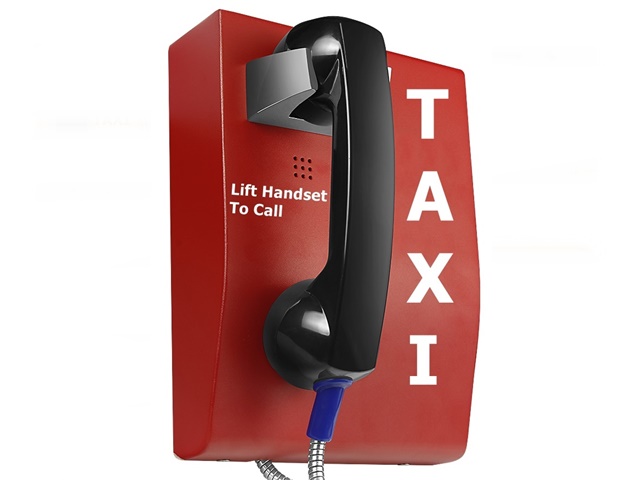

Alpha 2 Hotlines- Wall Mounted

Wired or Mains Powered

Versions - 3G GSM or 4G LTE / Analogue / VoIP

The Alpha 2 Taxi Free Phone Hotlines are designed for wall mounting indoors or outdoors if placed within sheltered areas such as our phone hoods. The body is made from strong rolled steel with a steel armoured handset cable to protect against vandalism.

The standard model is red with optional taxi signage across the front panel. The call point is ideal for areas where the is risk of vandalism because the telephone is extremely tough and robust. The customer simply lifts the handset to autodial the pre-stored number.

The Alpha Series is available to Analogue Networks - powered through analogue line (PSTN or PABX), VoIP SIP - powered by PoE or DC Mains and Wireless 3G (SIM) powered 12Vdc mains supply.

FEATURES

  • Wireless 3G GSM or 4G LTE / Analogue or VoIP SIP
  • Suitable for wall mounting
  • Anti-vandal body / handset - rolled steel
  • Non-corrosive handset and body
  • Weather protection rated IP55
  • Powered by batteries, PoE, Analogue Network or DC Mains
  • Remote status reporting (3G Version)
  • Simple installation with tamper proof screws
  • Non-volatile memory programmable for speed-dialling (PTT)
  • Remote or local programming SMS or DTMF (version dependant)
  • RoSH, CE & FCC compliant / 24 Months Warranty
  • PDF Icon

    Contact Us

    PDF Icon

    Other Options - Alpha 1 Streamlined Series

    3g, analogue or voip wall mounted roubust taxi telephone

    Alpha 1-1

    Streamlined Red Autodial Hotline

    PDF Icon

    View Product Page

    stainless-steel durable taxi telephone hotline for wall mounting

    Alpha 1-2

    Streamlined Stainless-Steel Autodial Hotline

    PDF Icon

    View Product Page

    yellow taxi telephone call point freephone IP65 wall mounted vandal proof booking service hotline

    Alpha 1-3

    Streamlined Yellow Autodial Hotline

    PDF Icon

    View Product Page

    industrial robust taxi hotline telephone freepohone with keypad for ivr systems

    Alpha 1-4

    Stainless-Steel Hotline with Keypad for IVR Systems

    PDF Icon

    View Product Page

    pictures of alpha 1 lift to call freephone in colour yellow

    IP55 Weather Resistant

    With an operating temperature range -25 to +70 deg C, the weatherproof IP55 rating conforms to EN60529. We suggest outdoor use of the telephone in sheltered areas or even mounted within a telephone hood, see our range of hoods and booths.

    Vandal Proof

    Alpha Series are housed within a robust rolled steel body and the handset cord made from armoured stainless steel with a magnetic hook receiver. All external telephone components are designed to deter vandalism.

    Remote Reporting

    Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your requirement. Alerts can be setup and received through SMS or DTMF (model dependant).

     Commands and Alerts;

  • Low battery alert
  • Poor network coverage alerts
  • Change outbound call number
  • Change number receiving SMS alerts
  • Adjust microphone volume
  • Adjust speakerphone volume
  • Change security password
  • Choice of Colours

    The steel body is powder coated red as standard, however, other colours are available up-on request. "Taxi" is silk painted on the body of the call point to capture customers attention. Please speak to us regarding other designs.

    24 Months Warranty

    All our products a sold with 24-months manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.

    Versions

    Alpha - 3G / 4G / Alpha - Analogue / Alpha - VoIP

    Alpha 3G or 4G SIM card version is great for placement where there is no telephone network. The 12V mains powered telephone can be configured and manged remotely through SMS application and is open to any mobile network proivder with 3G or 4G coverage

    Interchangeable rechargeable batteries ensure lengthy operation where there is no external power supply. The batteries are simple to charge with a DC mains charger (supplied upon purchase).

    The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone

    VoIP SIP Version through PBX and powered by PoE is programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone or through a small internal keypad located directly within the telephone

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Analogue Telephone Network
    Supply Voltage 24 VDC to 65 VDC
    Supply Current 20 mA DC to 100 mA DC
    Ringer Volume 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
    Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
    SIP Version
    Power Supply PoE or 12V DC
    Power Consumption Idle:1.5W-Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
    3G Version
    Power Supply 12V DC or Rechargeable Battery
    Power Consumption Idle:0.3W - Active: 1.5W
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at a distance of 1m
    Program Method Remote Programming by SMS
    Frequency
    A version: Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    E version Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    J version Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    Ambient Conditions
    Protection Type IP55, Conforms to EN60529
    Operating Temperature -25°C to +70°C
    Storage Temperature -25°C to +85°C
    Unit size: 248 *185 *160(mm)
    Gross weight 5KG
