Waterproof, Vandal Proof & Wireless .....No Line,  No Power ?  No Problem !

Bravo Series Taxi Call Tower - Waterproof and Vandal Proof

Wireless Sim Card / VoIP / Analogue

Call Us: 555-555-1234

Bravo Series

Hi-Visibility Vandal Resistant Taxi Call Points

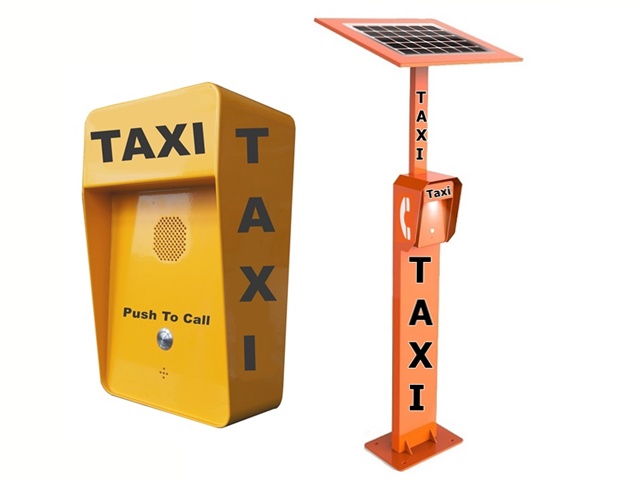

Bravo 4 Solar Powered Call Tower

3G Wireless Solar with Battery Backup

Versions - Wireless 3G or 4G / Analogue / VoIP

Bravo 4-3G Solar Powered Push-to-Call Taxi Tower, Hi-visibility with stand-out taxi graphics, is ideal for placement where there is no telephone cable or external power. The hi-visibility body will certainly capture the customers attention. Constructed from strong anti-vandal steel and IP66 weatherproof. The customer simply pushes the call button to autodial the taxi call centre with hands-free operation.

Easy installation and management with solar technology and backup rechargeable battery pack included. Analogue and VoIP versions are also available.

FEATURES

  • Wireless 3G or 4G GSM / VoIP or Analogue Versions
  • steel robust call point telephone with interchangeable batteries and gsm 3g or analogue or voip
  • Robust anti-vandal housing constructed of thick steel
  • Weather protection rated IP66
  • Powered by batteries, PoE, analogue line or DC mains
  • Smart status reporting (SMS Version)
  • Vandal resistant metal call button
  • Simple installation with tamper proof screws
  • Containment of auxiliary circuits
  • Non-volatile memory programmable for speed-dialling
  • Remote programming SMS or DTMF (version dependant)
  • CE & FCC compliant / 12 Month Warranty
  • PDF Icon

    Contact Us

    PDF Icon

    Solar Powered

    Our Solar Call Tower with back-up rechargeable batteries is suited to locations that capture moderate levels of sunlight all year round. The solar panels are bracket mounted and easily adjusted to ensure maximum exposure to light. The body is constructed of heavy duty galvanized steel, free of sharp edging, powder painted orange as standard and fixed to the floor with 4 screws. The pillar can be painted a colour of your choice or manufactured in stainless steel AIS304/AIS316L, up on demand.

    Weatherproof IP66

    Suitable for harsh wet conditions with an operating temperature range -25 to +70 deg C. The weatherproof IP66 rating conforms to EN60529, will guarantee optimum performance in uncompromising environments.

    Vandal Proof

    Bravo Series are housed within sold steel body, all external telephone components are designed to deter vandals and are supplied with tamper-proof fixings.

    Remote Reporting

    Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your requirement. Alerts can be setup and received through SMS or DTMF (model dependant).

     Commands and Alerts;

  • Low battery alert
  • Poor network coverage alerts
  • Change outbound call number
  • Change number receiving SMS alerts
  • Adjust microphone volume
  • Adjust speakerphone volume
  • Change security password
  • Choice of Colours

    The steel body is powder coated orange as standard, however, other colours are available up-on request. "Taxi" is silk painted on the body of the call point to capture customers attention. Please speak to us regarding other designs.

    24 month Warranty

    All our products a sold with a 12-month manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.

    Versions

    Bravo 4-3G / Bravo 4-Analogue / Bravo 4-VoIP

    Bravo 4-3G is great for placement where there is no telephone cable or external power supply. The telephone can be configured and manged remotely through SMS application with a 3G sim card, purchased from any reputable network provider. Uniquely constructed with a sealed and key lockable battery compartment, this allows for quick deployment whilst on site with simple push-to-fit DC connections., Interchangeable rechargeable batteries ensure lengthy operation where there is no external power supply. The batteries are simple to charge with a DC mains charger (supplied upon purchase).

    The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone

    VoIP SIP Version through PBX and powered by PoE is programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone or through a small internal keypad located directly within the telephone

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Analogue Telephone Network
    Supply Voltage 24 VDC to 65 VDC
    Supply Current 20 mA DC to 100 mA DC
    Ringer Volume 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
    Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
    SIP Version
    Power Supply PoE or 12V DC
    Power Consumption Idle:1.5W-Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type Full duplex
    Ringer Volume 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
    3G Version
    Power Supply 12V DC or Rechargeable Battery
    Power Consumption Idle:0.3W - Active: 1.5W
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at a distance of 1m
    Program Method Remote programming by SMS
    Frequency
    A version: Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    E version Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    J version Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    Ambient Conditions
    Protection Type IP66, Conforms to EN60529
    Operating Temperature -25°C to +70°C
    Storage Temperature -25°C to +85°C
     Size: 2400 *436 *306(mm)
    Gross Weight 45KG
    • New to TaxTel - Be the first to rate this product!


    Add a review

    3G mobile SIM card, easy swap re-chargeable battery or solar powered. Indoor & outdoor use, Ports, Stations, Taxi Ranks, Streets, Retail, Leisure & Tourism.
    Clear 2Way speech customer to booking office.  Telephone line & VoIP versions too.
