Bravo Series

Hi-Visibility Vandal Resistant Taxi Call Points

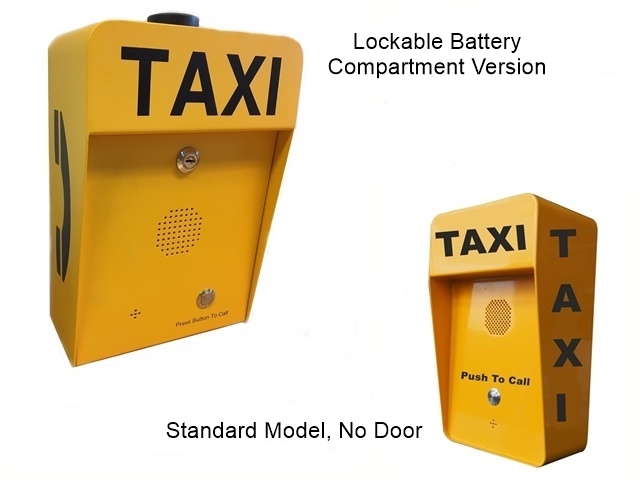

Bravo 1 Call Point - Surface Mounted

Battery, Wired or Mains Powered

Versions - Wireless Sim Card / Analogue / VoIP

Bravo Call Points are great for wall mounting externally where there is no telephone line or power supply, with option for 3G or 4G network connectivity and inclusive of an internal battery compartment for housing long life battery packs, these provided either 37-60 days continued use. The hi-visibility body, constructed from durable steel, is IP66 weatherproof and incorporates vandal resistance features throughout. The customer simply pushes Easy to monitor with remote management the call button to autodial the taxi call centre with hands-free operation. Simple installation and easy to maintain with long-life rechargeable battery packs. Other options available; mains powered, either 3G or 4G with a 12V DC mains adaptor. Analogue (PSTN) powered by standard line or VoIP SIP (PoE). These versions are supplied without a lockable hinged door.

bravo 1 call point taxi freephone vandal proof and water proof

FEATURES

  • 3G or 4G Wireless GSM / Analogue or VoIP SIP
  • bravo 1 call point taxi freephone vandal proof and water proof
  • Suitable for wall or column mounting
  • Robust anti-vandal housing constructed of thick steel
  • Weather protection rated IP66
  • Powered by batteries, PoE, analogue line or 12v DC mains
  • Remote status reporting (3G Version)
  • Vandal resistant metal call button
  • Simple Installation with tamper proof screws
  • Non-volatile memory programmable for speed-dialling
  • Remote programming SMS or DTMF (version dependant)
  • RoSH, CE & FCC compliant / 12 Month Warranty
  • PDF Icon

    Buy Online

    PDF Icon

    Weatherproof IP66

    Suitable for harsh wet conditions with an operating temperature range -25 to +70 deg C. The weatherproof IP66 rating conforms to EN60529, will guarantee optimum performance in uncompromising environments.

    Vandal Proof

    Bravo Series  are housed in robust steel body with external telephone components inclusive of a lockable battery compartment, tamper proof screws and metal call button designed to deter vandalism

    Remote Reporting

    Status alert and reporting available to a dedicated number, this is very simple to setup and manage. The level of reporting is remotely adjusted to suit your requirement. Alerts can be setup and received through SMS or DTMF (model dependant).

     Commands and Alerts;

  • Low battery alert
  • Poor network coverage alerts
  • Change outbound call number
  • Change number receiving SMS alerts
  • Adjust microphone volume
  • Adjust speakerphone volume
  • Change security password
  • Rechargeable Battery Packs

    Charging and changing batteries could not be simpler, with push-fit DC plugs connectors and 12V DC mains charger. We recommend 2 batteries per call point to allow for continuous interchanging.

    Battery Models

  • TTB1 - 37 days continued operational on standby
  • TTB2 - 60 days continued operational on standby
  • Choice of Colours

    The steel body is powder coated yellow as standard, however, other colours are available up-on request. "Taxi" is silk painted on the body of the call point to capture customers attention. Please speak to us regarding other designs.

    12 Month Warranty

    All our products a sold with a 12-month manufacturer warranty. Please refer to our Terms and Conditions for warranty full details.

    Versions

    Bravo 1-3G / Bravo 1-Analogue / Bravo 1-VoIP

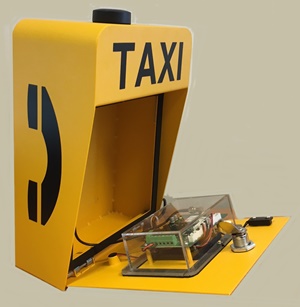

    Bravo 1-3G is great for placement where there is no telephone cable or external power supply. The telephone can be configured and manged remotely through SMS application with a 3G sim card, purchased from any reputable network provider. Uniquely constructed with a sealed and key lockable battery compartment, this allows for quick deployment whilst on site with simple push-to-fit DC connections. Interchangeable rechargeable batteries ensure lengthy operation where there is no external power supply. The batteries are simple to charge with a DC mains charger (supplied upon purchase).

    The Analogue Version for analogue telephone networks, powered through the network or by DC Mains Supply. Programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone

    VoIP SIP Version through PBX and powered by PoE is programmed by DTMF (Duel Tone Multi Frequency) when dialling the telephone or through a small internal keypad located directly within the telephone

    FC - This mark indicates compliance with FCC Part 15 Subpart B Class B

    CE - This mark indicates compliance with the: Radio and Telecommunications Terminal Equipment Directive 2004/108/EC

    Analogue Version
    Power Supply Analogue Telephone Network
    Supply Voltage 24 VDC to 65 VDC
    Supply Current 20 mA DC to 100 mA DC
    Ringer Volume 80dB(A) at 1m. 110dB(A) at 1m with external horn speaker
    Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
    SIP Version
    Power Supply PoE or 12V DC
    Power Consumption Idle:1.5W-Active:1.8W
    SIP Protocol SIP 2.0 (RFC3261)
    Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at 1m. 110dB(A) at 1m (external horn speaker)
    3G Version
    Power Supply 12V DC or Rechargeable Battery
    Power Consumption Idle:0.3W - Active: 1.5W
    Communication Type Full Duplex
    Ringer Volume 90~95dB(A) at a distance of 1m
    Program Method Remote programming by SMS
    Frequency
    A version: Dual-Band WCDMA/HSDPA 850/1900MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    E version Dual-Band UMTS/HSDPA 900/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    J version Dual-Band UMTS/HSDPA 850(800)/2100MHz / Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
    Ambient Conditions
    Protection Type IP66, Conforms to EN60529
    Operating Temperature -25°C to +70°C
    Storage Temperature -25°C to +85°C
    Packaging Size: 339 *146 *126(mm)
    Gross Weight 6KG
